Product Details:
|
| Name: | 1 Digit 7 Segment Display | Digit Height: | 0.39 Inch |
|---|---|---|---|
| Digit Number: | Single Digit | Surface Color: | Black Or Grey Color |
| Sreen Size: | 13*10(mm) | Emitting Color: | Red |
| Usage: | Indoor, Digital Indicator | Polarity: | Common Anode |
| Display Function: | Graphics | Segment Color: | White Or Same As Emitting Color |
| Application: | Weight Machine,electronic Instrument | Span Life: | 50000 Hours |
| High Light: | 0.39 Inch Numeric LED Display,0.39In Numeric LED Display,0.39Inch 1 digit 7 segment display |
||

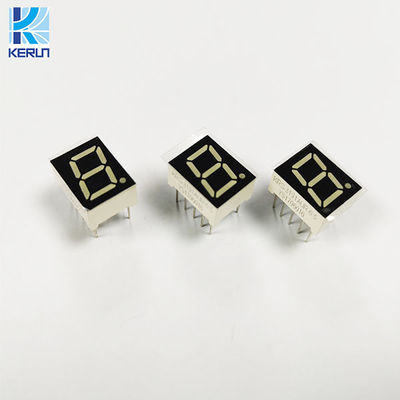

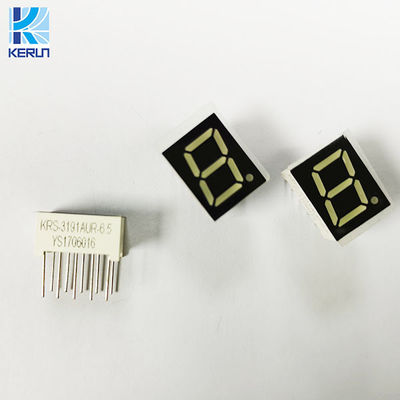

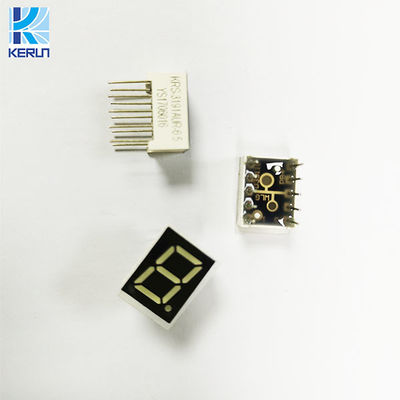

FND One Digit Numeric LED Display Module 7 Segment 0.39 Inch Red Color
FND One Digit 7 Segment Numeric Led Digital Display Module Red Color
Product Details:
1. Lower working voltage and current
2. Lighting answering Time <0.1μs, better high frequency, chromaticity uniformity, high brightness.
3. Smaller volume, lighter weight, better impact resistance, solid sealing, good steady.
4. Long life for 50,000 hours.
5. Keep scaning and drivering every segment continuously.
6. Better showeffect and wider visual angle.
7. Recommend constant current driver.
8. Protective coating, and rip off when using.
9. Solder temperature: 260℃,and stay time less than 5 seconds.
Product date sheet:
| Product Name | 7 Segment Numeric Led Digital Display Module | Other Optional |
| Part NO. | KRS-3191AUR-6.5 | Can be customed |
| Digit number | 1 digit | 2digits,3digits, 4digits,5digits,6 digits |
| Digit height | 0.39 inch | 0.30,0.36,0.39....4.0(inch) |
| Color | RED | White, blue,green, yellow-green, orange,etc. |
| Size | 13*10(mm) | Other size are supported |
| Polarity | Common Anode | Common Cathode |
| Life span | 50000hours | |
| Free Samples | supported | |
| Lead time for sample | 3-7 working days | Tooling samples are 12-18 working days |
| Lead time for formal order | 25 working days | According to order quantity |
| OEM&ODM | Support | Based on customer’s drawing or idea |
| LOGO printing | Support | Based on customer’s drawing or idea |
Application for Standard LED Digital Displays
Industrial Equipment
· Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems
Networking
· Telecommunication equipment, answering machines, telephones, base stations, PBX modems, network cards
Outdoor Signs
· Petrol pump meters
Consumer
· Audio/video equipment, audio mixers, set top boxes, amplifiers, musical instruments, gaming machines, currency/coin counters, security systems
Consumer “White Goods”
· Displays for washing machine digital panels, cookers, freezers and dishwashers
Medical Equipment
· Hospital monitoring systems
Transportation
· Displays, radar detectors, avionics displays
Computers and Peripherals
· CPU speed indicator, printer front panels, fax machines, copy machines, power supply equipment, cash registers
